Corsair HX1000i (ATX v3.1) 电源

电源

Corsair

Corsair HX1000i (ATX v3.1) 电源

规格型号 HX1000i (ATX v3.1)

资料来源：Cybenetics第三方产品资料

查看检测报告查看资料来源

产品与来源

产品信息

产品名称

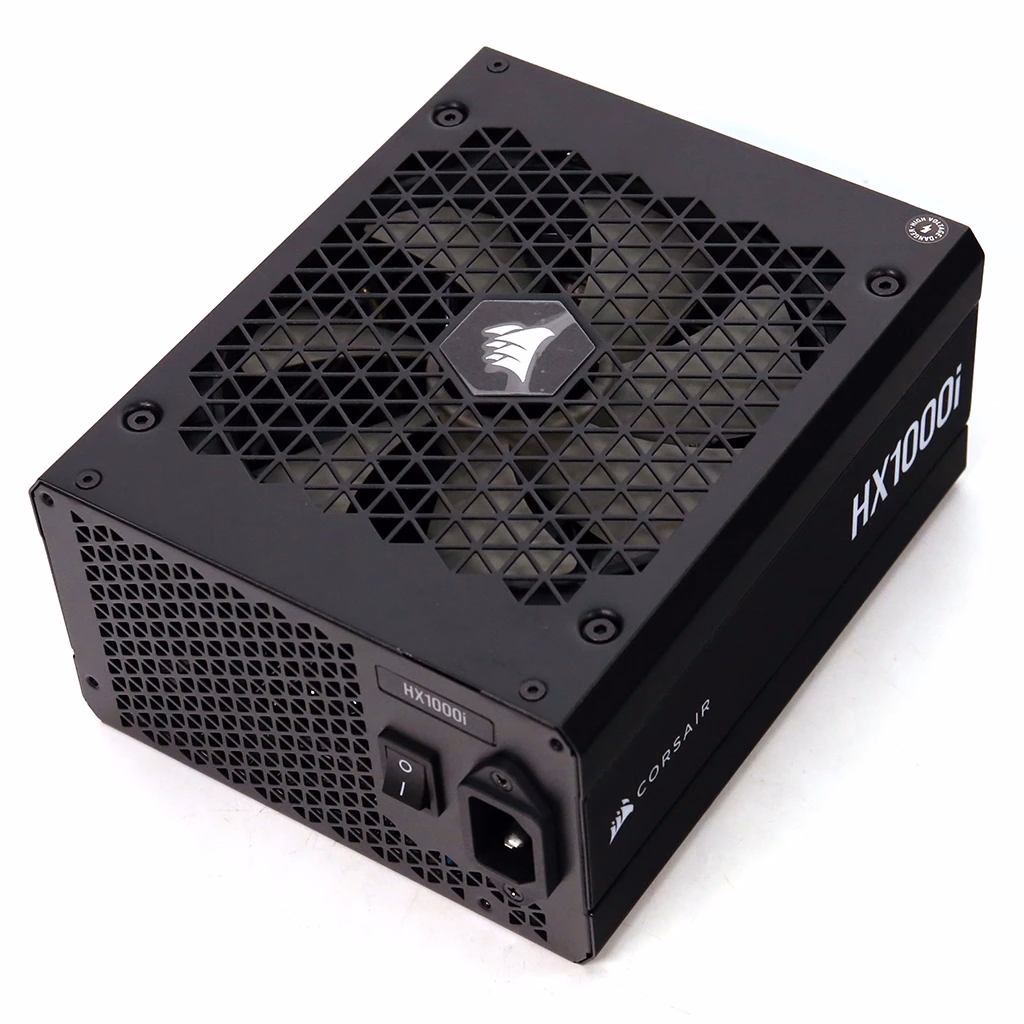

Corsair HX1000i (ATX v3.1) 电源
规格型号
HX1000i (ATX v3.1)
品牌
Corsair
产品分类
电气部件与输配电 / 电源
委托单位
未公开
检测单位
Cybenetics Ltd
检测时间
2024年07月22日
资料发布方
Cybenetics
资料类型
实验室测试报告

对应方法与数据

依据与结果

数据适用范围

数据与图片适用于来源列明的受测样品、型号及配置，评分采用各发布方原有量表。

  • Cybenetics PSU Test Protocol
    项目测试方法

主要结果

实测值

平均效率

90.022%

查看条件

115 V; >1450 load combinations

结果来源
实测值

平均噪声

21.85dBA

查看条件

115 V; >1450 load combinations

结果来源

报告与原始图表

检测报告

查看报告图片和测试结果。点击图片可放大，完整内容请查阅原件。

原始结果表

17 份表格，展开查看全部项目。

测试设备与方法13 行 · 2 列
测试设备与方法
项目数值
Electronic LoadsChroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC SourcesChroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power AnalyzersRohde & Schwarz HMC8015 & NPA701
OscilloscopesPicoscope 4444, Siglent SDS2104X PLUS
Sound AnalyzerBruel & Kjaer 2270 G4
MicrophoneBruel & Kjaer Type 4955-A
Temperature LoggerPicoscope TC-08
TachometerUNI-T UT372
MultimetersKeysight 34465A
EMI AnalyzerTekBox TBMR-110M-EU
Isolation Transformer4kVA
UPSFSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
测试方法Cybenetics PSU Test Protocol
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
受测设备识别与测试日期28 行 · 2 列
受测设备识别与测试日期
项目数值

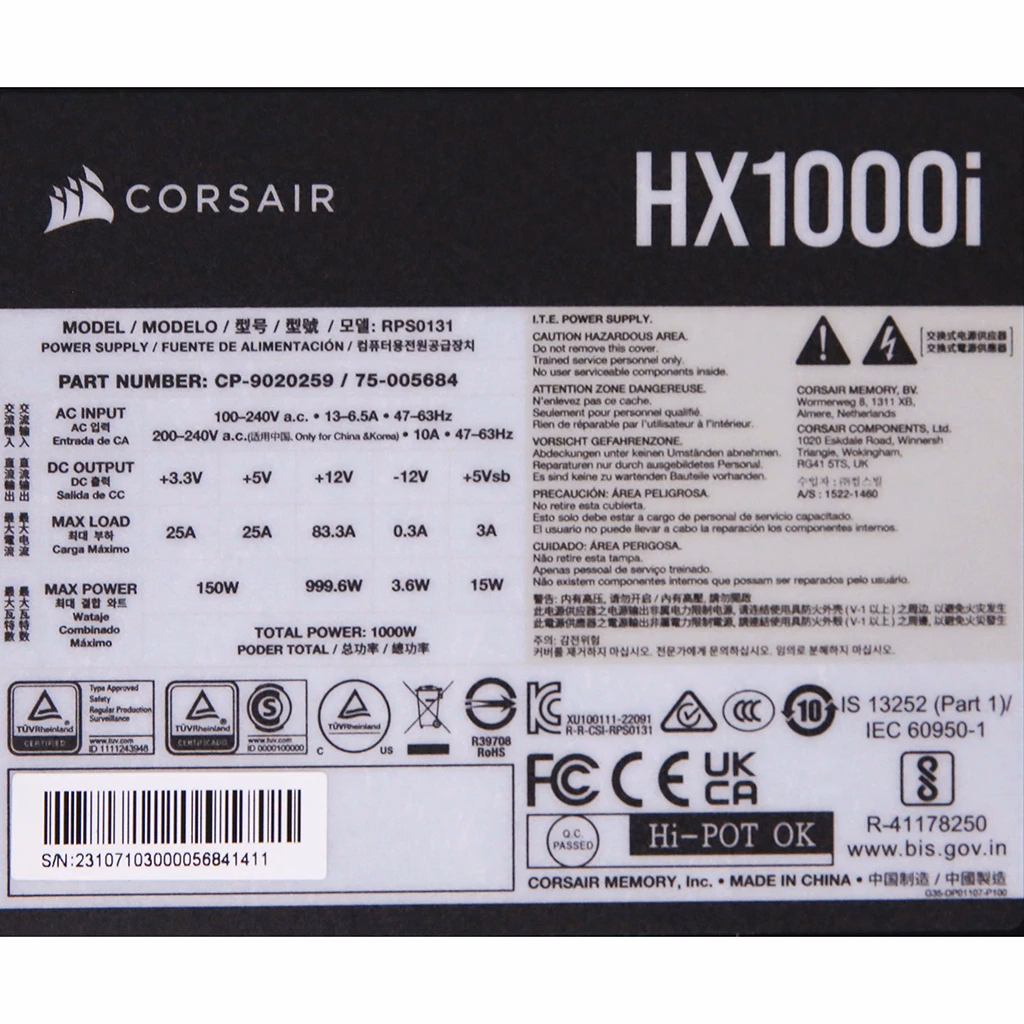

Product Identification DetailsProduct Identification Details
BrandCorsair
ModelHX1000i (ATX v3.1)
OEM/ODMChannel Well Technology
Serial Number23107103000056841411
Product SpecificationsProduct Specifications
Manufacturer-Provided InformationManufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)47-63
Rated Power (W)1000
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFully Modular
Warranty-
Cybenetics MeasurementsCybenetics Measurements
Dimensions (W x H x D)
重量
散热降温140mm Fluid Dynamic Bearing Fan (NR140P)
Semi-Passive Operation✓
Cybenetics Testing InformationCybenetics Testing Information
Lab IDCR10002513
Date of receiptJul 4, 2024
Testing DateJul 22, 2024
Report Issued DateJul 24, 2024
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
温度与适用条件5 行 · 2 列
温度与适用条件
项目数值
Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
115 V 测试汇总16 行 · 3 列
115 V 测试汇总
Source column 1Source column 2Source column 3
AccreditedAccreditedAccredited

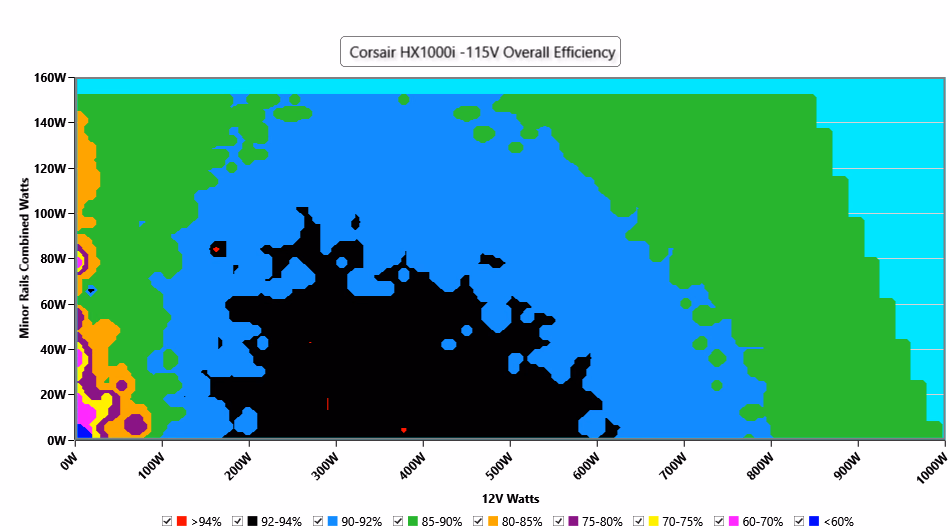

Average Efficiency (>1450 load combinations)90.022%90.022%

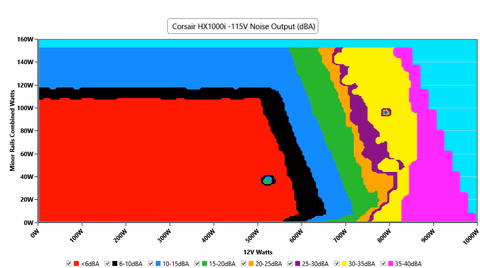

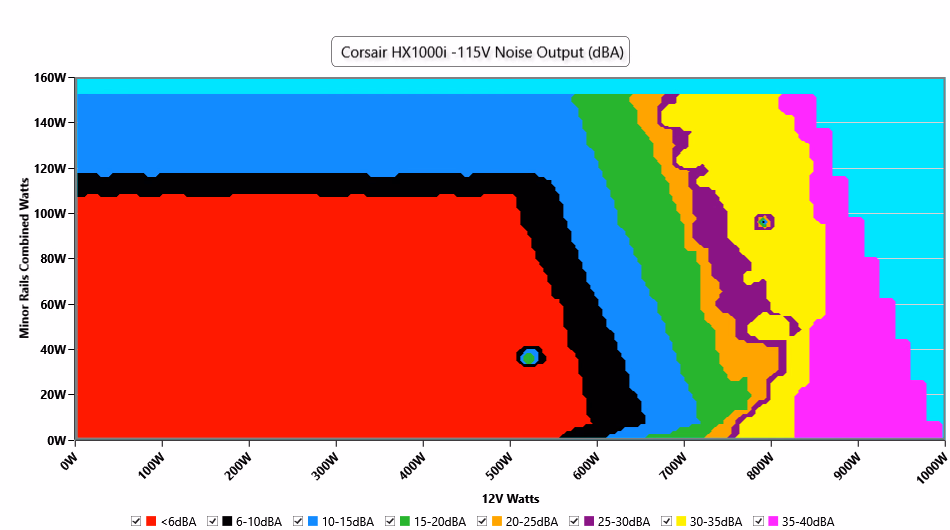

Average Noise Output (>1450 Load Combinations)21.85dBA21.85dBA
Average PF (>1450 Load Combinations)0.9910.991
Efficiency With 10W (≤500W) or 2% (>500W) Load72.412%72.412%
Standby Power Consumption0.0180W0.0180W
Non-AccreditedNon-AccreditedNon-Accredited
12V Ripple (Full Load)28.96mV28.96mV
5V Ripple (Full Load)12.72mV12.72mV
3.3V Ripple (Full Load)13.20mV13.20mV
5VSB Ripple (Full Load)10.17mV10.17mV
12V Load Regulation0.76%0.76%
5V Load Regulation0.28%0.28%
3.3V Load Regulation0.55%0.55%
5VSB Load Regulation1.06%1.06%
Inrush Current12.250A12.250A
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
230 V 测试汇总30 行 · 3 列
230 V 测试汇总
Source column 1Source column 2Source column 3
AccreditedAccreditedAccredited

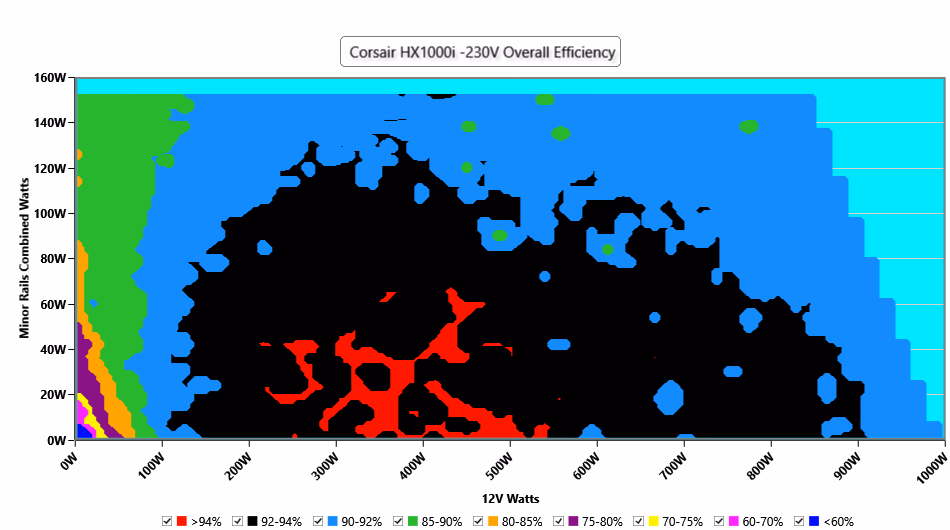

Average Efficiency (>1450 load combinations)91.597%91.597%

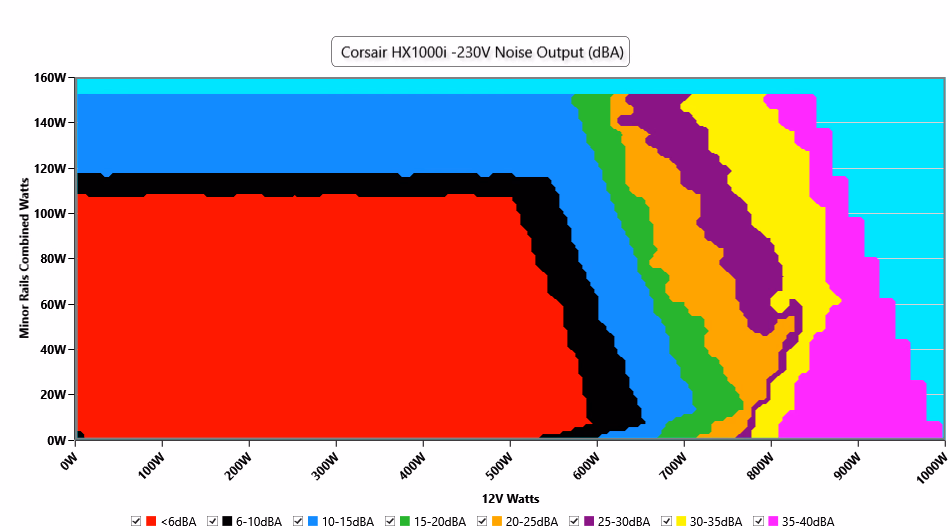

Average Noise Output (>1450 Load Combinations)21.71dBA21.71dBA
Average PF (>1450 Load Combinations)0.9460.946
Efficiency With 10W (≤500W) or 2% (>500W) Load70.441%70.441%
Standby Power Consumption0.0855W0.0855W
Non-AccreditedNon-AccreditedNon-Accredited
12V Ripple (Full Load)27.66mV27.66mV
5V Ripple (Full Load)13.90mV13.90mV
3.3V Ripple (Full Load)15.22mV15.22mV
5VSB Ripple (Full Load)10.50mV10.50mV
12V Load Regulation0.82%0.82%
5V Load Regulation0.22%0.22%
3.3V Load Regulation0.61%0.61%
5VSB Load Regulation1.04%1.04%
Inrush Current28.100A28.100A
12V Transient Response (200%)11.48V11.48V
5V Transient Response (200%)4.941V4.941V
3.3V Transient Response (200%)3.129V3.129V
5VSB Transient Response (200%)4.900V4.900V
Hold-Up Time & PWR_OK Signal22.70ms22.70ms
AC Loss to PWR_OK Hold Up Time17.70ms17.70ms
PWR_OK Inactive to DC Loss Delay5.00ms5.00ms
PSU Timings: T1 (20% / 100%)62.0ms64.0ms
PSU Timings: T3 (20% / 100%)142.0ms141.0ms
12V OCP (28.2°C / 42.3°C)104.20A (125.09%), 12.122V104.20A (125.09%), 12.132V
5V OCP (28.2°C / 42.3°C)35.5A (142.00%), 5.037V35.3A (141.20%), 5.042V
3.3V OCP (28.2°C / 42.3°C)35.7A (142.80%), 3.27V35.7A (142.80%), 3.267V
5VSB OCP (28.2°C / 42.3°C)4.6A (153.33%), 4.85V4.6A (153.33%), 4.832V
OPP (29.62°C / 41.92°C)123.70%123.71%
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
保持时间3 行 · 2 列
保持时间
项目数值
Hold-Up Time (ms)22.7
AC Loss to PWR_OK Hold Up Time (ms)17.7
PWR_OK Inactive to DC Loss Delay (ms)5
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
115 V 待机数据9 行 · 7 列
115 V 待机数据
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6Source column 7
Detailed ResultsDetailed ResultsDetailed ResultsDetailed ResultsDetailed ResultsDetailed ResultsDetailed Results
来源测试资料AverageMinLimit MinMaxLimit MaxResult
Mains Voltage RMS:115.07 V115.04 V113.85 V115.11 V116.15 VPASS
Mains Frequency:60.00 Hz59.99 Hz59.40 Hz60.01 Hz60.60 HzPASS
Mains Voltage CF:1.4161.4151.3401.4181.490PASS
Mains Voltage THD:0.13 %0.10 %N/A0.17 %2.00 %PASS
Real Power:0.018 W0.014 WN/A0.021 WN/AN/A
Apparent Power:10.381 W10.144 WN/A10.622 WN/AN/A
Power Factor:0.002N/AN/AN/AN/AN/A
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
230 V 待机数据9 行 · 7 列
230 V 待机数据
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6Source column 7
Detailed ResultsDetailed ResultsDetailed ResultsDetailed ResultsDetailed ResultsDetailed ResultsDetailed Results
来源测试资料AverageMinLimit MinMaxLimit MaxResult
Mains Voltage RMS:231.05 V230.94 V227.70 V231.10 V232.30 VPASS
Mains Frequency:50.00 Hz49.99 Hz49.50 Hz50.01 Hz50.50 HzPASS
Mains Voltage CF:1.4171.4171.3401.4191.490PASS
Mains Voltage THD:0.17 %0.15 %N/A0.27 %2.00 %PASS
Real Power:0.085 W0.071 WN/A0.116 WN/AN/A
Apparent Power:34.955 W34.515 WN/A35.428 WN/AN/A
Power Factor:0.002N/AN/AN/AN/AN/A
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源

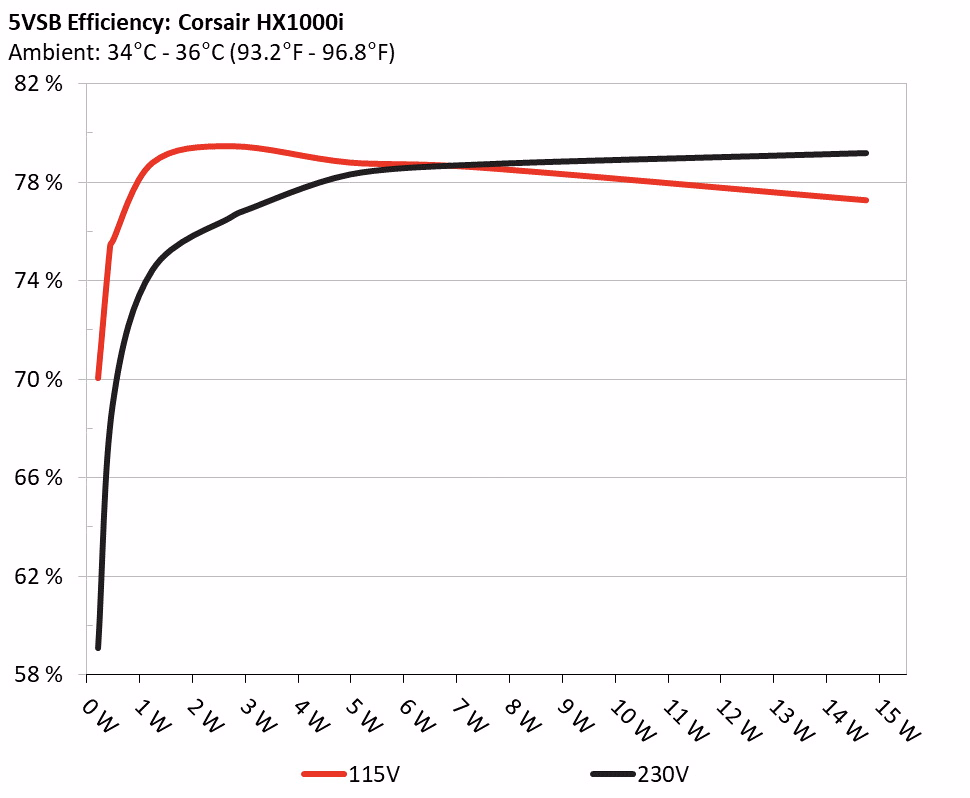

115 V 5VSB 效率13 行 · 5 列
115 V 5VSB 效率
Source column 1Source column 2Source column 3Source column 4Source column 5
Test #5VSBDC/AC (Watts)EfficiencyPF/AC Volts
10.045A0.226W70.039%0.031
15.018V0.323W70.039%114.83V
20.09A0.452W75.386%0.057
25.017V0.597W75.386%114.83V
30.55A2.751W79.448%0.273
35.001V3.463W79.448%114.84V
41A4.985W78.784%0.393
44.985V6.327W78.784%114.85V
51.5A7.452W78.58%0.465
54.968V9.483W78.58%114.83V
63A14.744W77.255%0.536
64.915V19.085W77.255%114.83V
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
230 V 5VSB 效率13 行 · 5 列
230 V 5VSB 效率
Source column 1Source column 2Source column 3Source column 4Source column 5
Test #5VSBDC/AC (Watts)EfficiencyPF/AC Volts
10.045A0.226W59.078%0.011
15.019V0.383W59.078%229.86V
20.6A3W76.868%0.107
25V3.904W76.868%229.87V
30.55A2.751W76.615%0.099
35.001V3.591W76.615%229.85V
41A4.986W78.334%0.166
44.986V6.365W78.334%229.84V
51.5A7.452W78.745%0.23
54.968V9.463W78.745%229.84V
63A14.746W79.203%0.336
64.915V18.619W79.203%229.82V
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
保护功能测试结果10 行 · 2 列
保护功能测试结果
项目数值
OCP (Cold @ 28.2°C)12V: 104.20A (125.09%), 12.122V 5V: 35.5A (142.00%), 5.037V 3.3V: 35.7A (142.80%), 3.27V 5VSB: 4.6A (153.33%), 4.85V
OCP (Hot) @ 42.3°C)12V: 104.20A (125.09%), 12.132V 5V: 35.3A (141.20%), 5.042V 3.3V: 35.7A (142.80%), 3.267V 5VSB: 4.6A (153.33%), 4.832V
OPP (Cold @ 29.6°C)1237.02W (123.70%)
OPP (Hot @ 41.9°C)1237.08W (123.71%)
OTP✓ (133°C @ Secondary Side)
SCP12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✓
SIPSurge: MOV Inrush: NTC & Bypass Relay
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源

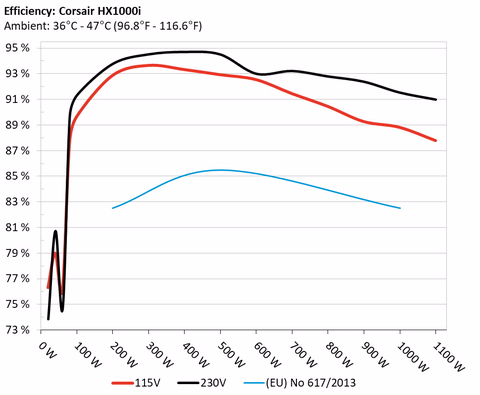

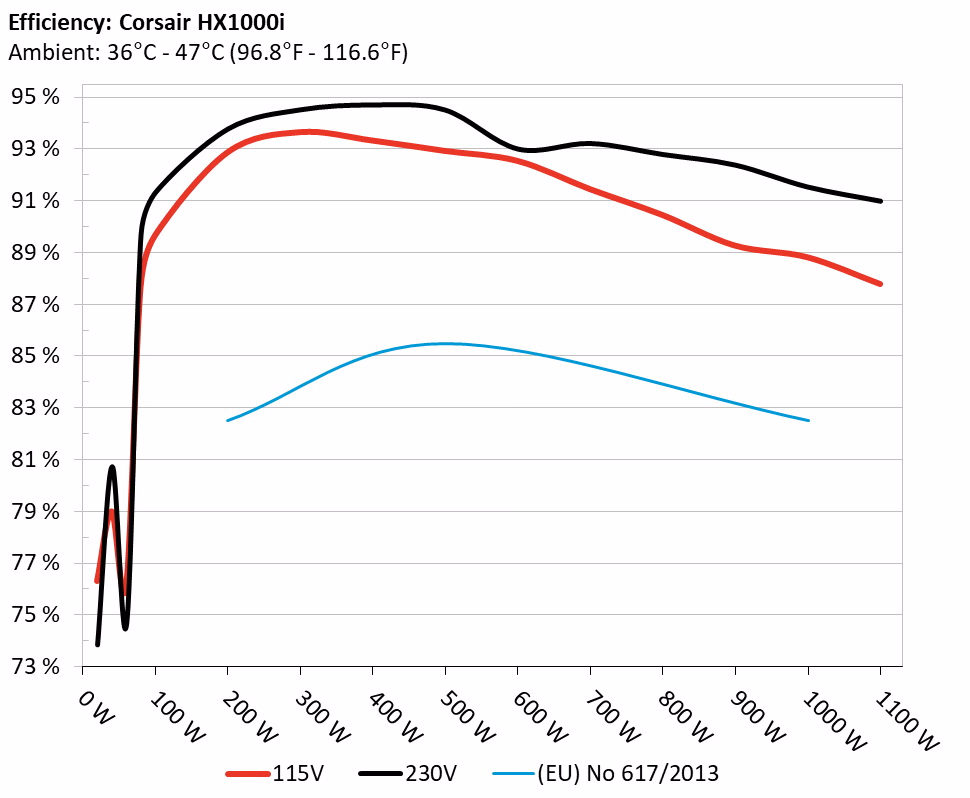

115 V 高温负载结果31 行 · 11 列
115 V 高温负载结果
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6Source column 7Source column 8Source column 9Source column 10Source column 11
Test12V5V3.3V5VSBDC/AC (Watts)EfficiencyFan Speed (RPM)PSU Noise (dB[A])Temps (In/Out)PF/AC Volts
10%6.428A1.972A2A0.989A99.97889.156%0<6.047.03°C0.96
10%12.194V5.069V3.299V5.058V112.2189.156%0<6.040.06°C114.8V
20%13.871A2.959A3.002A1.187A199.92592.361%0<6.047.65°C0.987
20%12.186V5.068V3.297V5.055V216.55792.361%0<6.040.52°C114.78V
30%21.672A3.453A3.504A1.386A299.96293.139%0<6.047.99°C0.994
30%12.177V5.067V3.296V5.05V322.09793.139%0<6.041.23°C114.74V
40%29.437A3.947A4.007A1.586A399.45892.817%0<6.051.36°C0.994
40%12.170V5.067V3.294V5.046V430.2592.817%0<6.041.8°C114.7V
50%36.891A4.934A5.013A1.785A499.19992.416%0<6.053°C0.995
50%12.163V5.067V3.292V5.043V539.77192.416%0<6.042.01°C114.67V
60%44.510A5.924A6.018A1.985A599.73592.029%440<6.042.68°C0.997
60%12.131V5.064V3.29V5.037V652.01392.029%440<6.058.32°C114.66V
70%51.932A6.915A7.026A2.186A699.47190.944%63612.743.41°C0.998
70%12.138V5.062V3.288V5.033V769.09290.944%63612.759.25°C114.63V
80%59.503A7.906A8.032A2.287A799.49689.945%126736.343.8°C0.998
80%12.127V5.059V3.286V5.029V889.99289.945%126736.354.32°C114.58V
90%67.408A8.402A8.524A2.388A899.32188.767%156241.144.49°C0.999
90%12.118V5.058V3.285V5.025V1013.3588.767%156241.157.78°C114.53V
100%75.122A8.899A9.046A2.992A999.29288.316%158942.445.62°C0.999
100%12.109V5.056V3.283V5.013V1132.688.316%158942.458.05°C114.5V
110%82.780A9.892A10.149A2.993A1099.91487.281%186746.246°C0.998
110%12.100V5.054V3.281V5.012V1259.787.281%186746.259.02°C114.47V
CL10.114A17.852A18.184A0A151.27584.311%61611.641.58°C0.981
CL112.185V5.057V3.277V5.114V179.35184.311%61611.658.29°C114.79V
CL20.113A24.68A0A0A126.23184.065%76619.542.09°C0.975
CL212.190V5.059V3.284V5.126V151.76384.065%76619.552.06°C114.8V
CL30.113A0A25.161A0A83.88176.831%94126.341.19°C0.956
CL312.189V5.067V3.279V5.078V109.17276.831%94126.348.55°C114.81V
CL482.547A0A0A0A999.8588.908%138338.344.69°C0.999
CL412.112V5.063V3.291V5.04V1124.55588.908%138338.365.23°C114.51V
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
230 V 高温负载结果31 行 · 11 列
230 V 高温负载结果
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6Source column 7Source column 8Source column 9Source column 10Source column 11
Test12V5V3.3V5VSBDC/AC (Watts)EfficiencyFan Speed (RPM)PSU Noise (dB[A])Temps (In/Out)PF/AC Volts
10%6.426A1.973A1.999A0.989A99.97890.808%0<6.046.76°C0.791
10%12.198V5.066V3.301V5.055V110.07490.808%0<6.040.06°C229.85V
20%13.867A2.961A3.001A1.188A199.92593.261%0<6.046.61°C0.914
20%12.188V5.065V3.299V5.051V214.33593.261%0<6.040.74°C229.82V
30%21.668A3.456A3.503A1.387A299.96494.001%0<6.048.14°C0.943
30%12.180V5.064V3.297V5.046V319.11394.001%0<6.041.14°C229.8V
40%29.434A3.95A4.006A1.587A399.4594.188%0<6.049.16°C0.94
40%12.171V5.063V3.295V5.041V424.7594.188%0<6.041.62°C229.78V
50%36.889A4.939A5.011A1.787A499.19693.994%0<6.050.34°C0.944
50%12.164V5.062V3.293V5.038V531.3593.994%0<6.042.43°C229.8V
60%44.532A5.928A6.018A1.987A599.74392.486%433<6.042.74°C0.974
60%12.125V5.061V3.29V5.035V647.94392.486%433<6.052.52°C229.71V
70%51.947A6.917A7.025A2.186A699.46992.7%63112.243.03°C0.985
70%12.134V5.06V3.288V5.031V754.66392.7%63112.256.56°C229.73V
80%59.509A7.905A8.033A2.287A799.49892.276%120534.243.79°C0.987
80%12.126V5.059V3.286V5.029V866.35792.276%120534.256.95°C229.71V
90%67.415A8.403A8.524A2.388A899.30591.868%134837.444.63°C0.989
90%12.117V5.057V3.284V5.025V978.90991.868%134837.457.41°C229.69V
100%75.132A8.9A9.047A2.993A999.31491.02%156241.145.75°C0.99
100%12.107V5.056V3.283V5.012V1097.95991.02%156241.159.01°C229.67V
110%82.793A9.893A10.151A2.993A1099.93190.473%179744.546.64°C0.991
110%12.098V5.054V3.28V5.011V1215.7790.473%179744.559.59°C229.66V
CL10.114A17.852A18.19A0A151.27785.321%61611.642.46°C0.896
CL112.185V5.057V3.276V5.114V177.2785.321%61611.655.56°C229.81V
CL20.113A24.682A0A0A126.23384.002%76719.542.97°C0.837
CL212.190V5.059V3.284V5.127V150.89384.002%76719.550.81°C229.83V
CL30.113A0A25.165A0A83.88177.876%94226.341.92°C0.787
CL312.189V5.067V3.278V5.077V107.71277.876%94226.348.02°C229.83V
CL482.567A0A0A0A999.9591.298%14534044.99°C0.99
CL412.111V5.062V3.291V5.039V1095.4891.298%14534057.16°C229.7V
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
115 V 低负载结果9 行 · 11 列
115 V 低负载结果
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6Source column 7Source column 8Source column 9Source column 10Source column 11
Test12V5V3.3V5VSBDC/AC (Watts)EfficiencyFan Speed (RPM)PSU Noise (dB[A])Temps (In/Out)PF/AC Volts
20W1.216A0.493A0.5A0.197A19.99275.827%0<6.042.13°C0.625
20W12.201V5.067V3.3V5.066V26.60275.827%0<6.036.38°C114.83V
40W2.680A0.691A0.7A0.296A39.99478.51%0<6.044.53°C0.894
40W12.199V5.068V3.3V5.065V51.06378.51%0<6.037.03°C114.83V
60W4.142A0.887A0.899A0.395A59.99475.642%0<6.044.3°C0.939
60W12.199V5.07V3.301V5.065V80.0275.642%0<6.038.12°C114.8V
80W5.600A1.085A1.099A0.494A79.92787.166%0<6.045.17°C0.904
80W12.195V5.07V3.301V5.064V91.07587.166%0<6.039.14°C114.81V
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
230 V 低负载结果9 行 · 11 列
230 V 低负载结果
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6Source column 7Source column 8Source column 9Source column 10Source column 11
Test12V5V3.3V5VSBDC/AC (Watts)EfficiencyFan Speed (RPM)PSU Noise (dB[A])Temps (In/Out)PF/AC Volts
20W1.216A0.493A0.5A0.198A19.99173.338%0<6.041.12°C0.456
20W12.204V5.065V3.301V5.064V27.31873.338%0<6.037.44°C229.85V
40W2.678A0.691A0.7A0.296A39.99480.214%0<6.041.49°C0.616
40W12.206V5.066V3.301V5.064V49.63980.214%0<6.037.26°C229.84V
60W4.140A0.888A0.899A0.395A59.99482.913%0<6.044.68°C0.687
60W12.204V5.067V3.303V5.063V72.25882.913%0<6.038.91°C229.83V
80W5.598A1.085A1.099A0.494A79.92789.186%0<6.044.78°C0.749
80W12.200V5.067V3.302V5.062V89.60289.186%0<6.039.14°C229.83V
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
115 V 纹波结果16 行 · 6 列
115 V 纹波结果
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6
Test12V5V3.3V5VSBPass/Fail
10% Load15.6 mV8.5 mV9.2 mV5.1 mVPass
20% Load16.1 mV9.9 mV10.3 mV6.0 mVPass
30% Load17.0 mV11.6 mV10.9 mV6.3 mVPass
40% Load19.4 mV8.5 mV8.3 mV5.3 mVPass
50% Load18.8 mV8.6 mV8.6 mV5.3 mVPass
60% Load17.1 mV9.5 mV9.9 mV6.0 mVPass
70% Load16.8 mV8.9 mV10.2 mV6.0 mVPass
80% Load16.9 mV8.7 mV10.1 mV6.9 mVPass
90% Load19.1 mV9.8 mV11.0 mV7.2 mVPass
100% Load29.0 mV12.7 mV13.2 mV10.2 mVPass
110% Load30.2 mV11.9 mV13.9 mV9.5 mVPass
Crossload 125.0 mV15.6 mV14.1 mV7.2 mVPass
Crossload 216.6 mV18.2 mV9.6 mV6.5 mVPass
Crossload 320.0 mV11.2 mV13.2 mV7.4 mVPass
Crossload 429.9 mV13.0 mV13.3 mV7.7 mVPass
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源
230 V 纹波结果16 行 · 6 列
230 V 纹波结果
Source column 1Source column 2Source column 3Source column 4Source column 5Source column 6
Test12V5V3.3V5VSBPass/Fail
10% Load12.6 mV8.7 mV8.5 mV5.6 mVPass
20% Load12.3 mV8.3 mV8.2 mV4.9 mVPass
30% Load15.5 mV10.1 mV9.6 mV6.0 mVPass
40% Load19.4 mV9.3 mV9.1 mV5.7 mVPass
50% Load22.9 mV10.1 mV10.1 mV6.1 mVPass
60% Load19.7 mV11.2 mV10.9 mV6.8 mVPass
70% Load20.2 mV12.7 mV14.8 mV8.8 mVPass
80% Load21.4 mV12.4 mV12.7 mV8.4 mVPass
90% Load21.7 mV12.9 mV12.8 mV8.2 mVPass
100% Load27.7 mV13.9 mV15.2 mV10.5 mVPass
110% Load30.2 mV15.7 mV14.3 mV10.5 mVPass
Crossload 126.3 mV15.6 mV13.9 mV7.1 mVPass
Crossload 215.6 mV14.2 mV9.4 mV5.1 mVPass
Crossload 317.7 mV10.9 mV12.9 mV7.4 mVPass
Crossload 429.8 mV13.2 mV13.9 mV9.1 mVPass
原站结果与规格

数值与量表来自原站，原文术语按来源保留。

查看表格来源

继续查阅

相关资料

品牌资料查看 Corsair 的产品产品资料查看电源申报资料了解检测报告要求
申报指南

准备好产品资料
从这里开始

下载申报指南
金标质量奖

为你的产品
申报金标

立即申报
查看原图 ↗
